Conveyor belt catalogue
All products20 products
- Steel Cord Conveyor Belt
- Fabric Conveyor Belt
- Solid Woven Conveyor
- Fire Resistant Anti-Static (FRAS) Covers
- Impact Resistant and High Abrasion Resistant Covers
- Intelligent Anti-tear Steel Cord Conveyor Belt
- Anti-Tear Conveyor Belt
- Heat Resistant, High Temperature Resistant Conveyor Belt
- Acid-Alkaline Resistant Conveyor Belt
- Oil Resistant Conveyor Belt
- Pipe Conveyor Belt
- Anti-adhesion Conveyor Belt
- Sidewall Conveyor
- Cleated Conveyor Belt
- Straight Warp Conveyor Belt
- Low Rolling Resistance Energy-Saving Conveyor Belt (NEW)
- IW/SW Steel Mesh Conveyor Belt
- Aramid Conveyor Belt
- Flame Resistant Fabric Conveyor Belt for General Use
- Flame Resistant Steel Cord Conveyor Belt for Underground Use
Confirm final specification, cover grade, and operating conditions with AusBelt Services.
Product 01
Steel Cord Conveyor Belt
- Application
- Long-distance, high-tension conveying for mining, ports, and heavy bulk handling.
- Construction
- Longitudinal zinc-coated steel cords provide high tensile strength, small elongation, and reduced take-up stroke distance.
- Use cases
- Coal and hard rock mining, ports, metallurgy, electricity generation, chemical industry, and quarries.
Product 02
Fabric Conveyor Belt
- Application
- Light to heavy-duty conveying over short, medium, and long distances, including high-speed heavy-load handling.
- Construction
- Nylon or polyester-nylon ply carcass with impact resistance, heat resistance, stability, and adhesion to rubber covers.
- Use cases
- Mines, metallurgy, construction, ports, electricity generation, chemical industries, and quarries.
Product 03
Solid Woven Conveyor
- Application
- Flame-resistant, anti-static belt construction for underground coal mine conditions.
- Construction
- PVC or PVG solid-woven carcass with high tensile strength, low elongation, shock resistance, anti-tear performance, and trough-ability.
- Operating fit
- PVG rubber covers support wet, slip, and cold resistance, with slope use up to 20 degrees.
Product 04
Fire Resistant Anti-Static (FRAS) Covers
- Application
- Fire-resistant and anti-static cover performance for flammable or underground environments.
- Construction
- Nylon, polyester, or PVC covers use a formula intended for continuous use in flammable environments.
- Use cases
- Coal mining, coal washeries, non-coal underground mining operations, and power plants.
Product 05
Impact Resistant and High Abrasion Resistant Covers
- Application
- Heavy-duty impact zones and high-abrasion handling environments.
- Construction
- Special rubber grades with softer Shore hardness indexes and cover thicknesses selected for severe service.
- Operating fit
- Specified for heavy-duty environments where impact and abrasion resistance are primary requirements.
Product 06
Intelligent Anti-tear Steel Cord Conveyor Belt
- Application
- Long-distance bulk materials conveying where tear detection and shutdown response are important.
- Monitoring
- Embedded sensor loops detect piercing, tearing, or jams and send a signal to the control system for alarm and shutdown response.
- Use cases
- Mining, ports, metallurgical and chemical industries, and quarries.

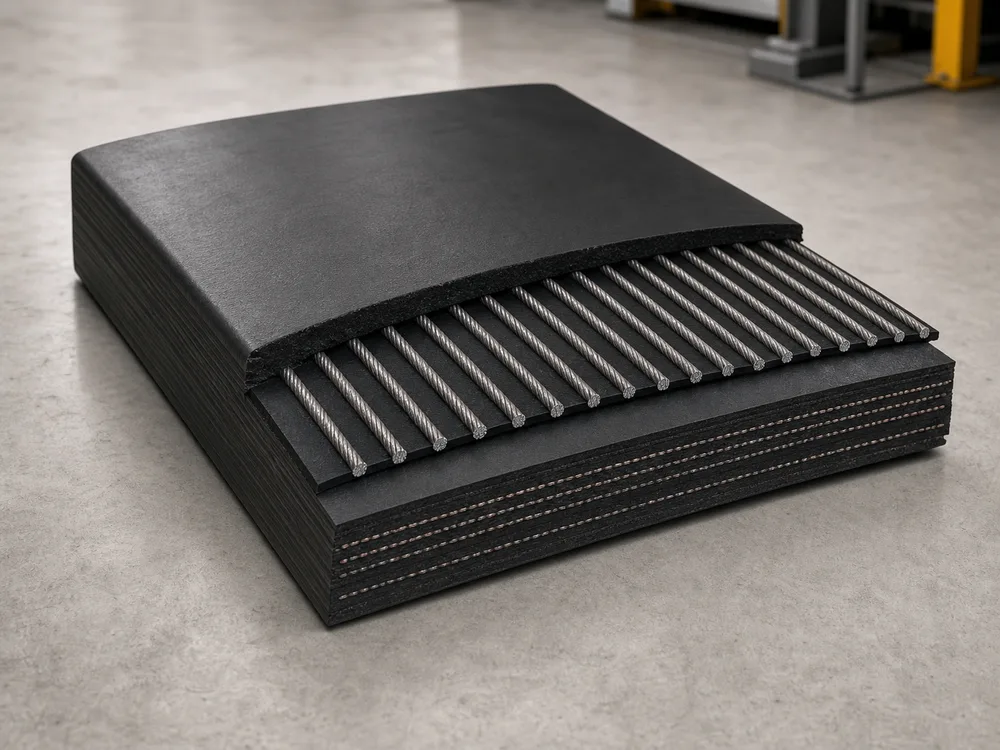

Product 07
Anti-Tear Conveyor Belt
- Application
- Steel-cord conveying where hard or sharp objects can pierce the belt cover.
- Construction
- Transverse steel cords or polyester cords are arranged in the top cover, or top and bottom covers, to help prevent tearing.
- Use cases
- Soft and hard rock mining, ports, electricity generation, chemical industry, and quarries.

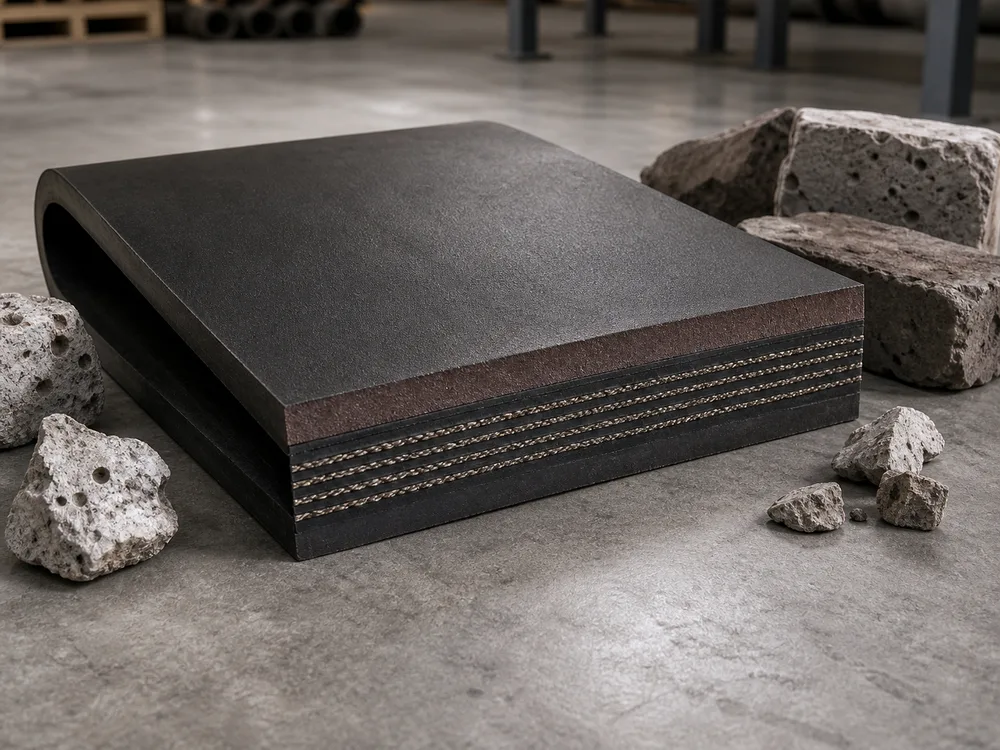

Product 08
Heat Resistant, High Temperature Resistant Conveyor Belt
- Application
- High-temperature bulk material conveying.
- Construction
- Ethylene-propylene or halogenated rubber covers support high-temperature resistance and adhesion; steel cord or fabric ply carcasses have low elongation up to 180C.
- Use cases
- Cement, chemical and metallurgical industries, and other high-temperature areas.

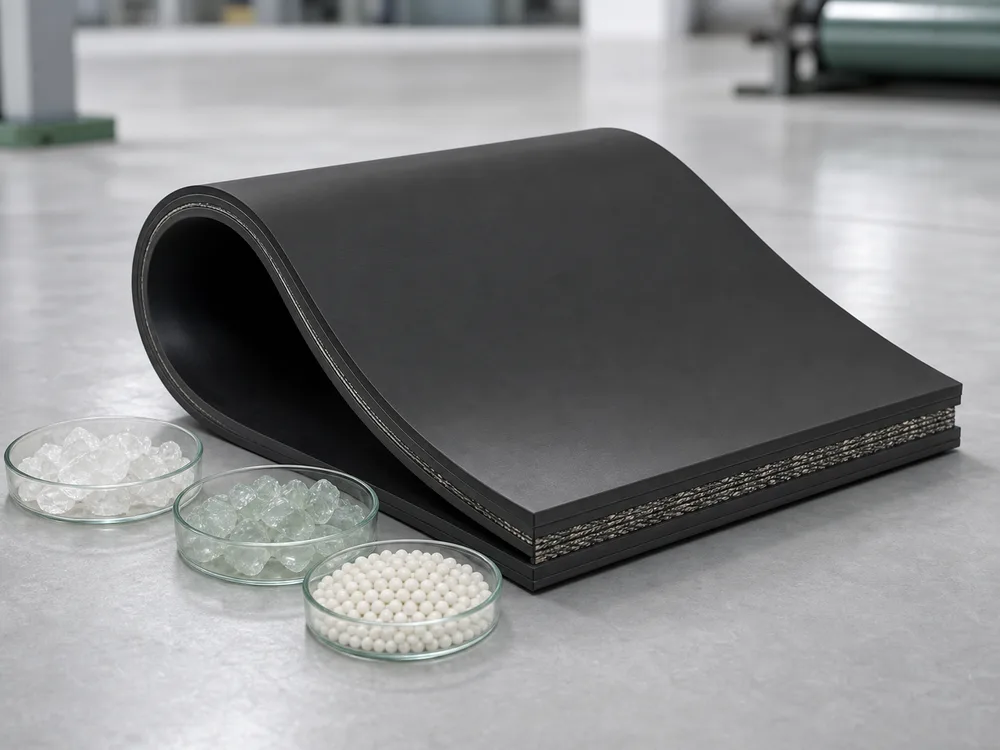

Product 09
Acid-Alkaline Resistant Conveyor Belt
- Application
- Conveying in chemical or alkaline environments where corrosion resistance is required.
- Construction
- Chemical-resistant rubber cover with a fabric ply or steel cord carcass for strength, trough-ability, and low elongation.
- Use cases
- Chemical-fertilizer factories, chemical factories, paper mills, mining industry, and more.

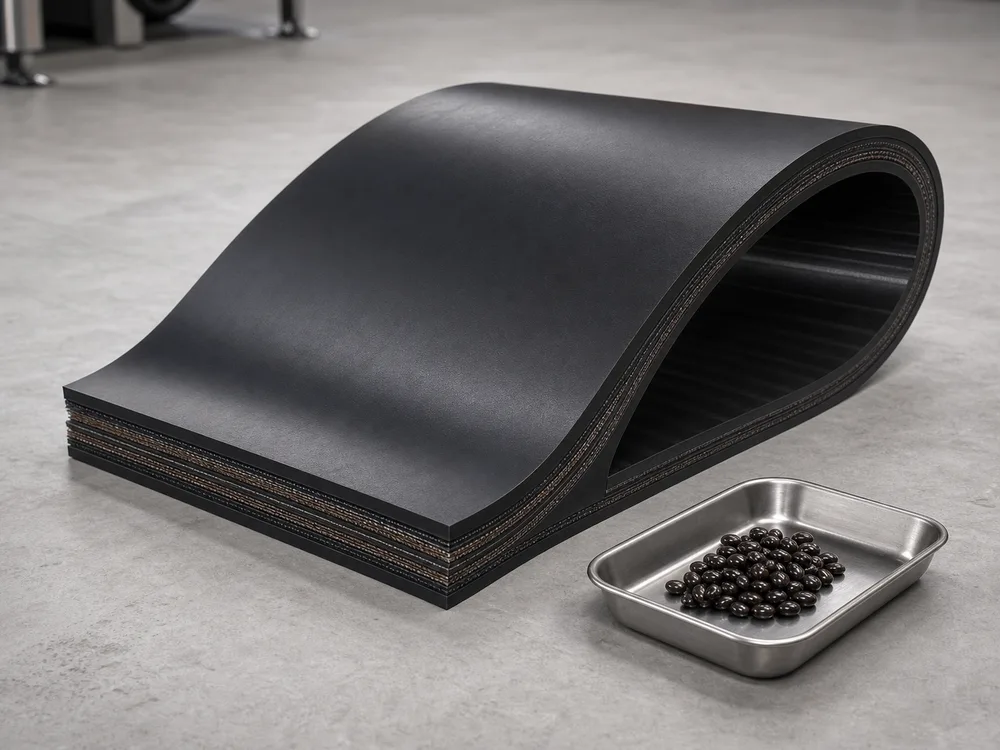

Product 10
Oil Resistant Conveyor Belt
- Application
- Conveying oily and greasy materials.
- Construction
- Steel cord or high-strength fabric ply carcass with anti-abrasive, oil-resistant synthetic rubber cover.
- Use cases
- Food-processing plants, chemical plants, and other oily-material handling environments.

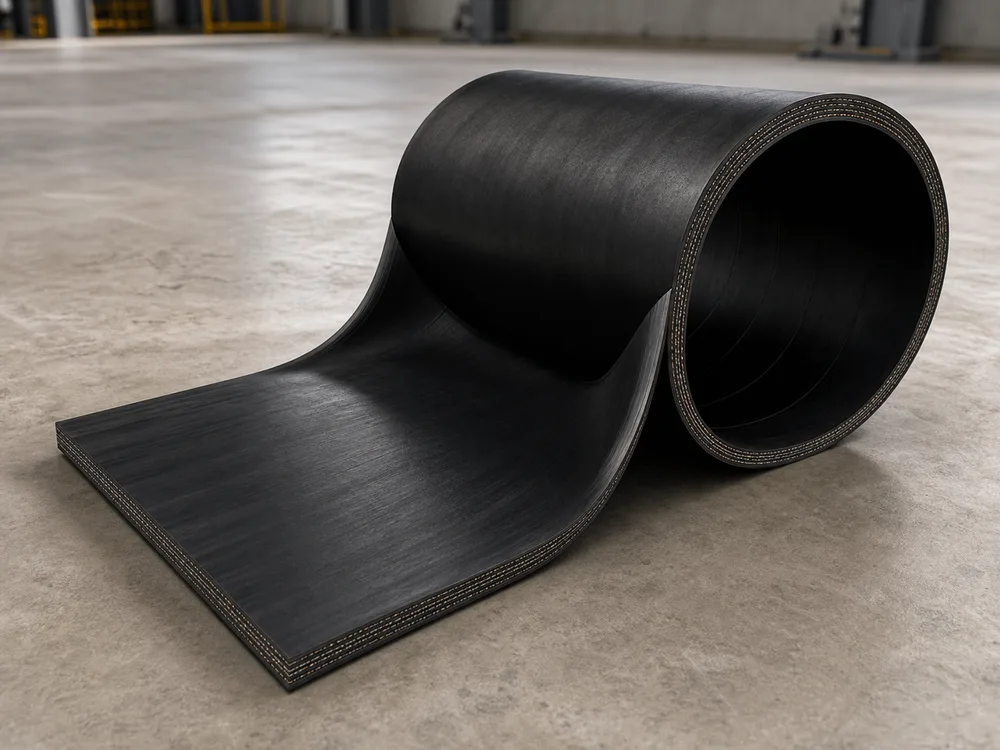

Product 11
Pipe Conveyor Belt
- Application
- Secure conveying where material containment, environmental protection, angled routes, or curved routes are required.
- Construction
- Steel cord or fabric ply carcass with high-strength, high-elasticity, anti-abrasion rubber cover.
- Operating fit
- The belt changes from flat to U-shape and then pipe form, supports angled conveying up to 30 degrees, and can be adjusted for curves.

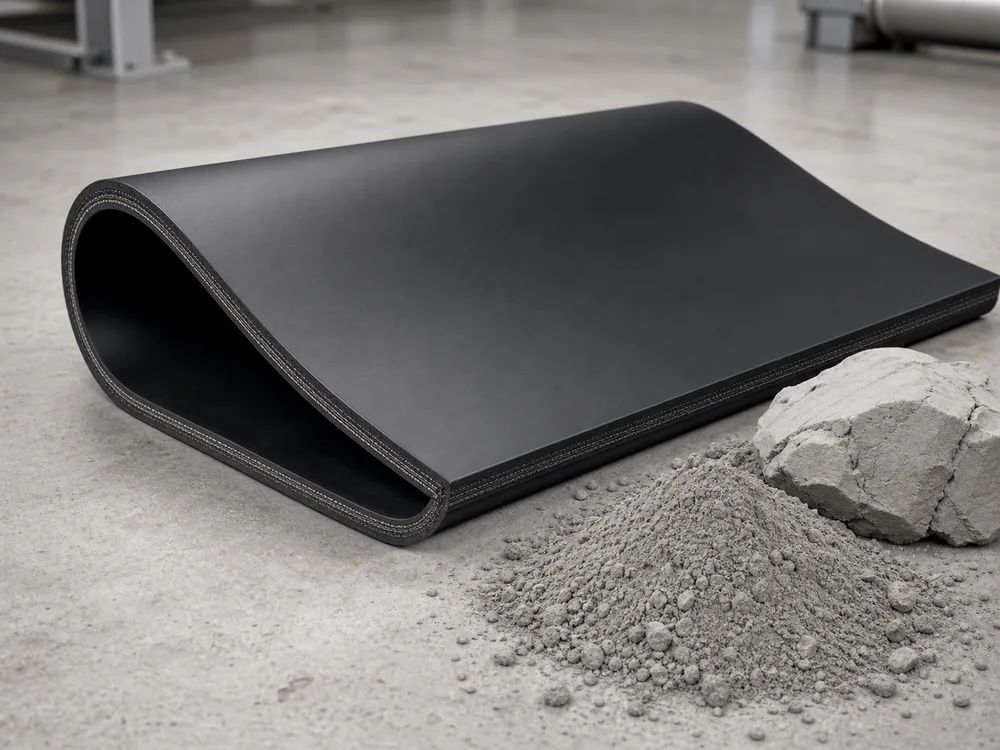

Product 12
Anti-adhesion Conveyor Belt
- Application
- Conveying where material release, cleaning, and reduced adhesion are important.
- Surface
- Low free energy and polarity on the belt surface.
- Operating fit
- Long-life, anti-static, and easy-clean belt surface.

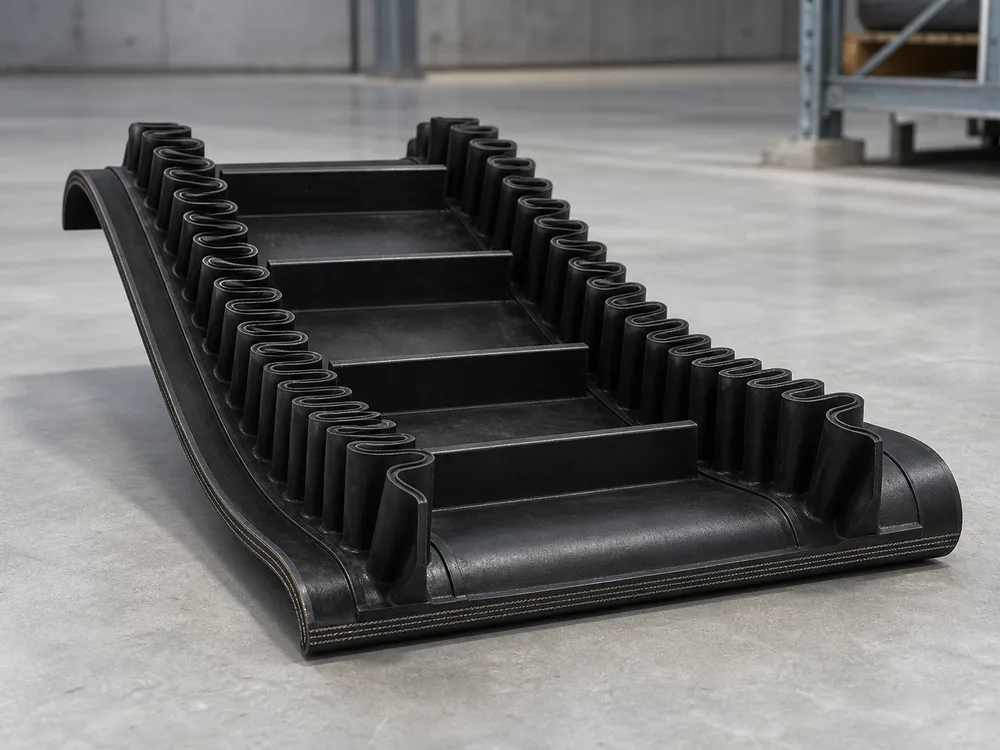

Product 13
Sidewall Conveyor
- Application
- Large-load material transport on restricted sites or steep track inclines.
- Construction
- Sidewall design helps prevent scattering or slippage during steep-angle conveying.
- Operating fit
- Supports high-capacity conveying up to 90 degrees with an adjustable, compact conveyor structure.

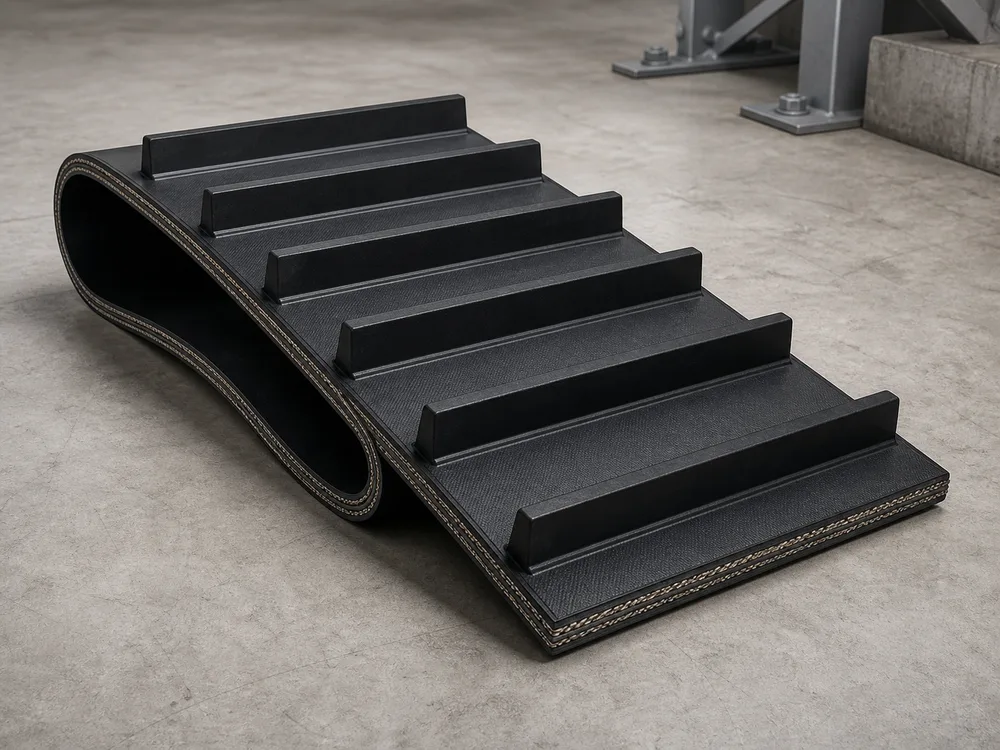

Product 14
Cleated Conveyor Belt
- Application
- Inclined conveying for powdered, granulated, small-lump, or packaged materials.
- Construction
- Cleated rubber belt-cover patterns can use varying heights and shapes.
- Operating fit
- Supports inclines up to 40 degrees without slippage; other patterns can be designed to suit customer needs.

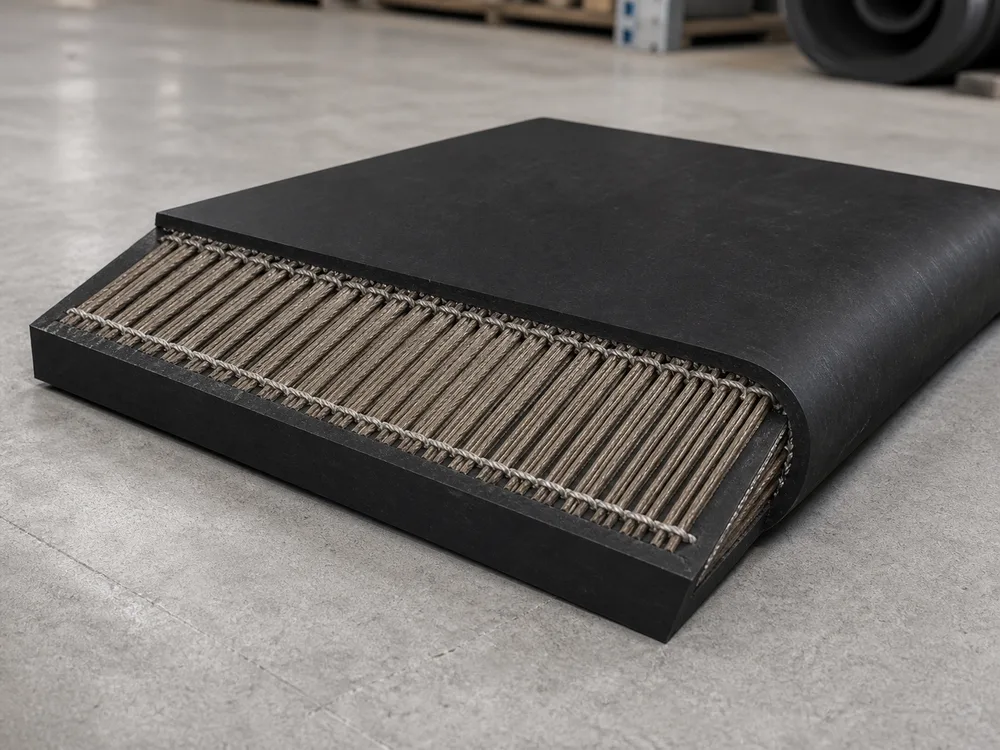

Product 15
Straight Warp Conveyor Belt
- Application
- Conveying with greater drop height, high load, or high-speed requirements.
- Construction
- One or two plies of specially woven high-denier fibre provide improved tensile strength and reduced elongation.
- Operating fit
- Straight warp structure improves impact absorption compared with standard EP or NN fabric and supports longer belt life.

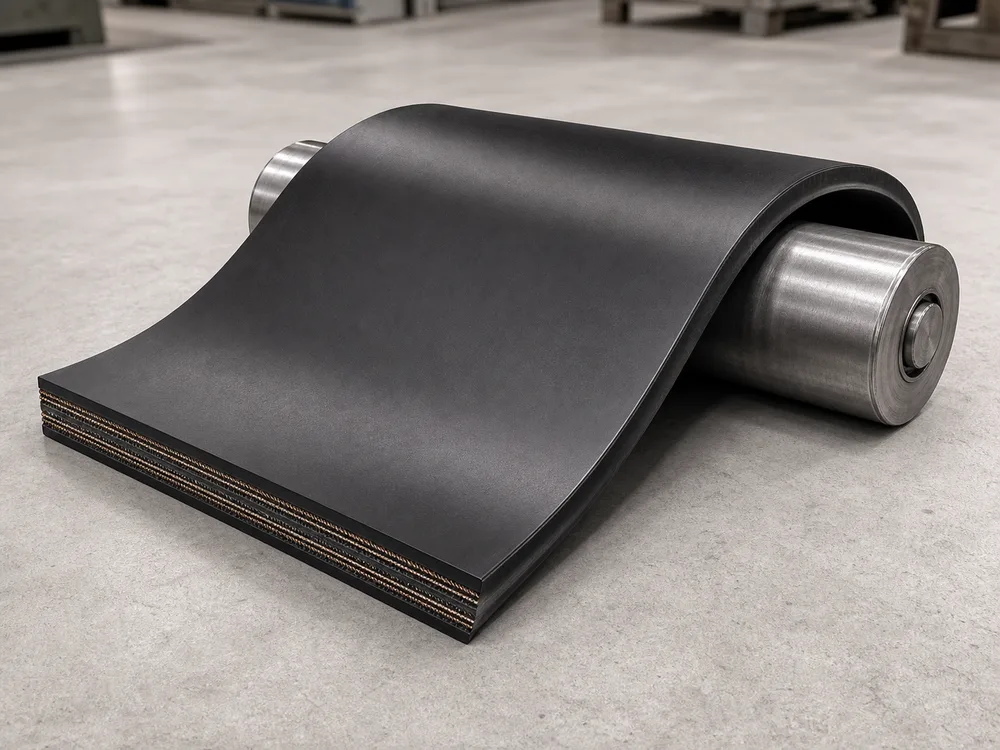

Product 16
Low Rolling Resistance Energy-Saving Conveyor Belt (NEW)
- Application
- Energy-saving conveyor belt category for ore, coal, quarry, and terminal handling applications.
- Construction
- Steel-mesh carcass provides extra anti-tear and anti-impact capacity with high-temperature resistant rubber cover options.
- Use cases
- Ore handling, quarries, coal and ore terminals, metallurgical, chemical and cement industries, electricity generation, and more.

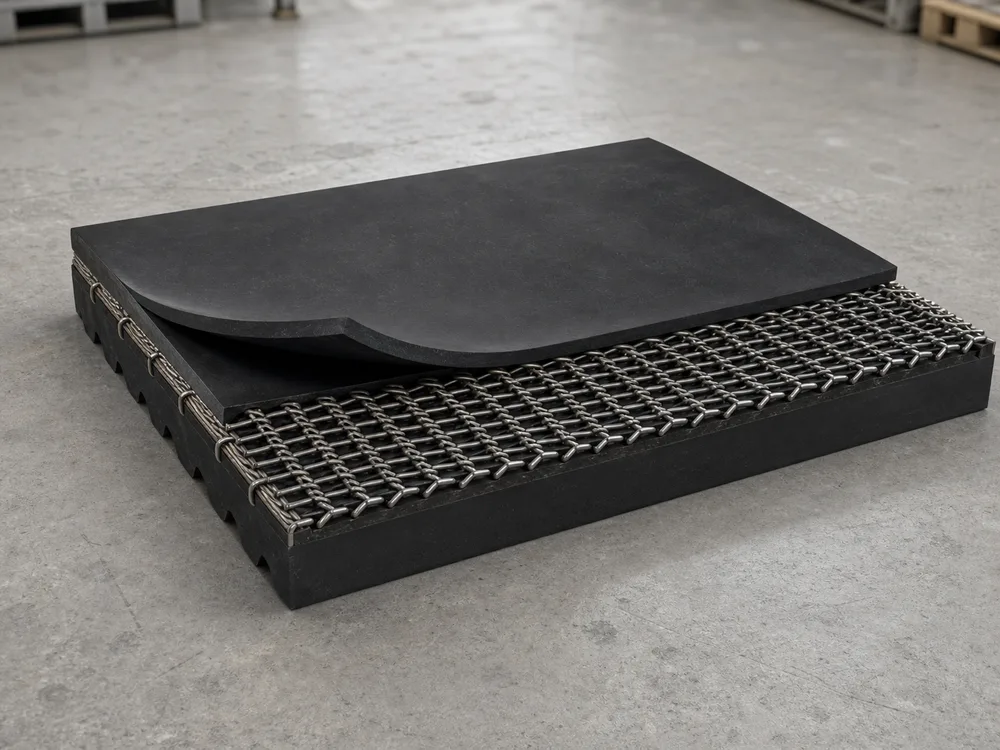

Product 17
IW/SW Steel Mesh Conveyor Belt
- Application
- Conveying where anti-tear and anti-impact capacity are primary requirements.
- Construction
- Steel-mesh carcass with high-temperature resistant rubber cover options.
- Use cases
- Ore handling, quarries, coal and ore terminals, metallurgical, chemical and cement industries, electricity generation, and more.

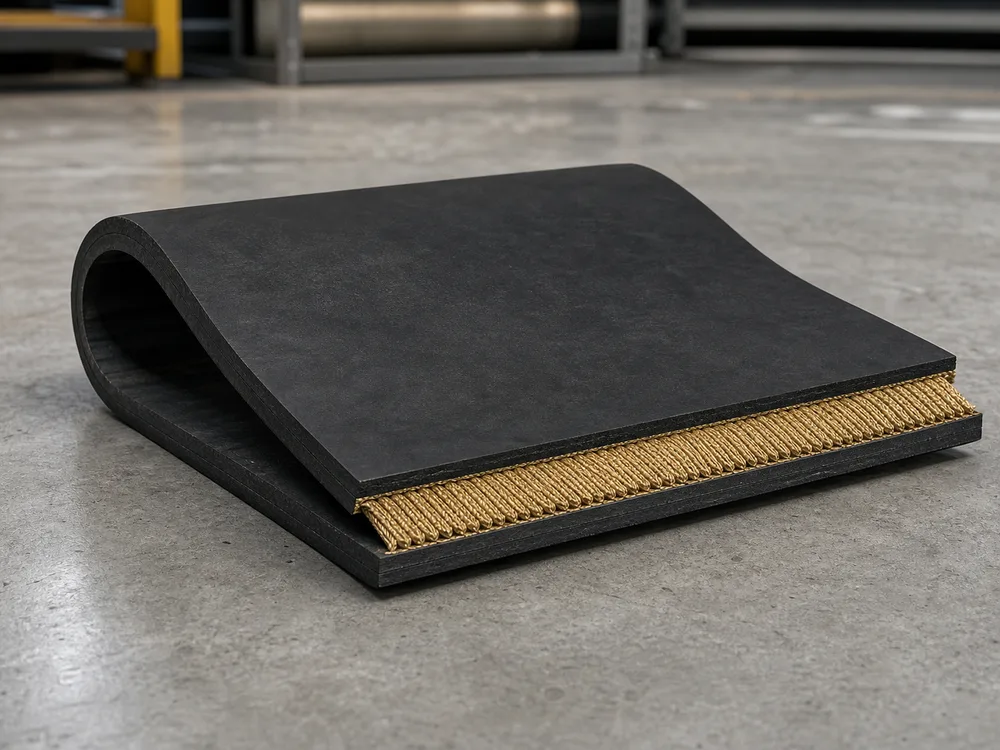

Product 18
Aramid Conveyor Belt
- Application
- Strong, lightweight conveying where low energy consumption is important.
- Construction
- Tough single-ply synthetic Aramid fiber carcass.
- Cover options
- Cover materials are available for resistance to wear, impact, flame, heat, chemicals, corrosion, and fatigue.

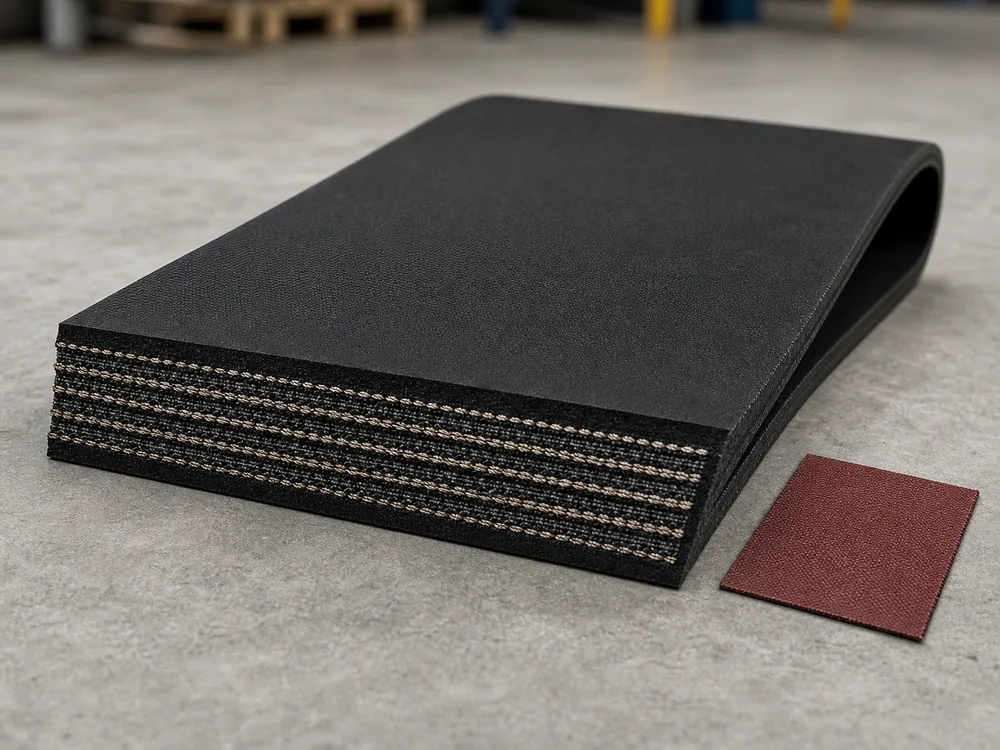

Product 19
Flame Resistant Fabric Conveyor Belt for General Use
- Application
- General-use flame-resistant fabric conveying in flammable environments.
- Construction
- Nylon, polyester, or PVC covers use a formula intended for continuous use in flammable environments.
- Use cases
- Coal washeries, coal and non-coal underground mining operations, and power plants.

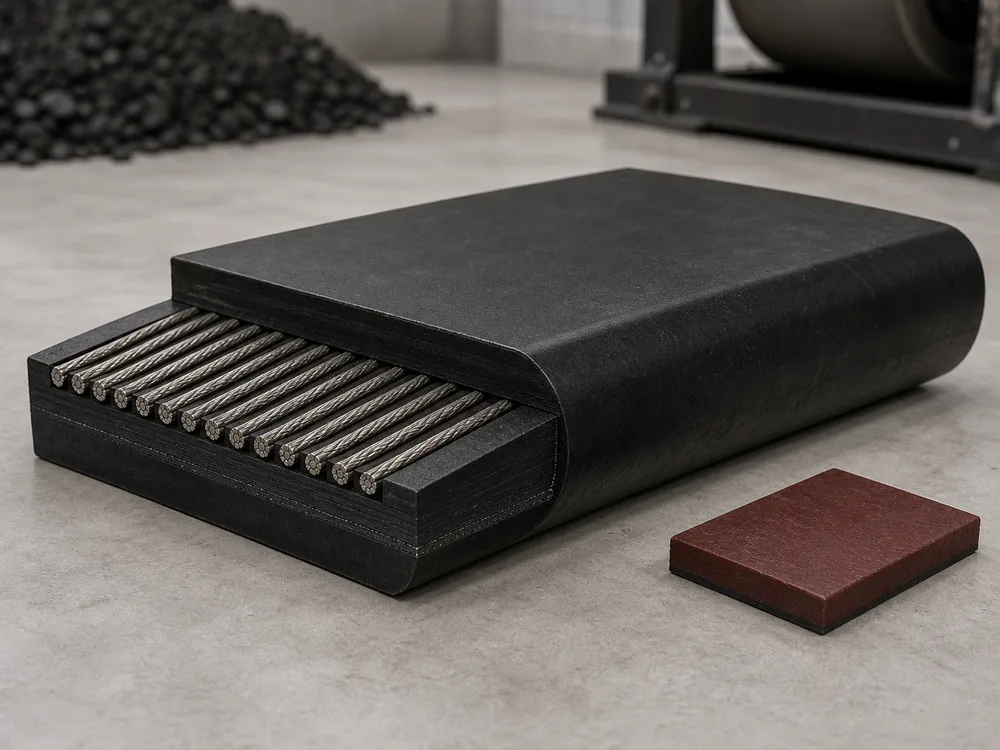

Product 20
Flame Resistant Steel Cord Conveyor Belt for Underground Use
- Application
- Underground use where fire-resistant and anti-static properties are required.
- Construction
- Steel cord conveyor belt construction with high-strength, long-distance, and large-load qualities.
- Operating fit
- Specified for potentially flammable or combustible underground coal mine conditions.
